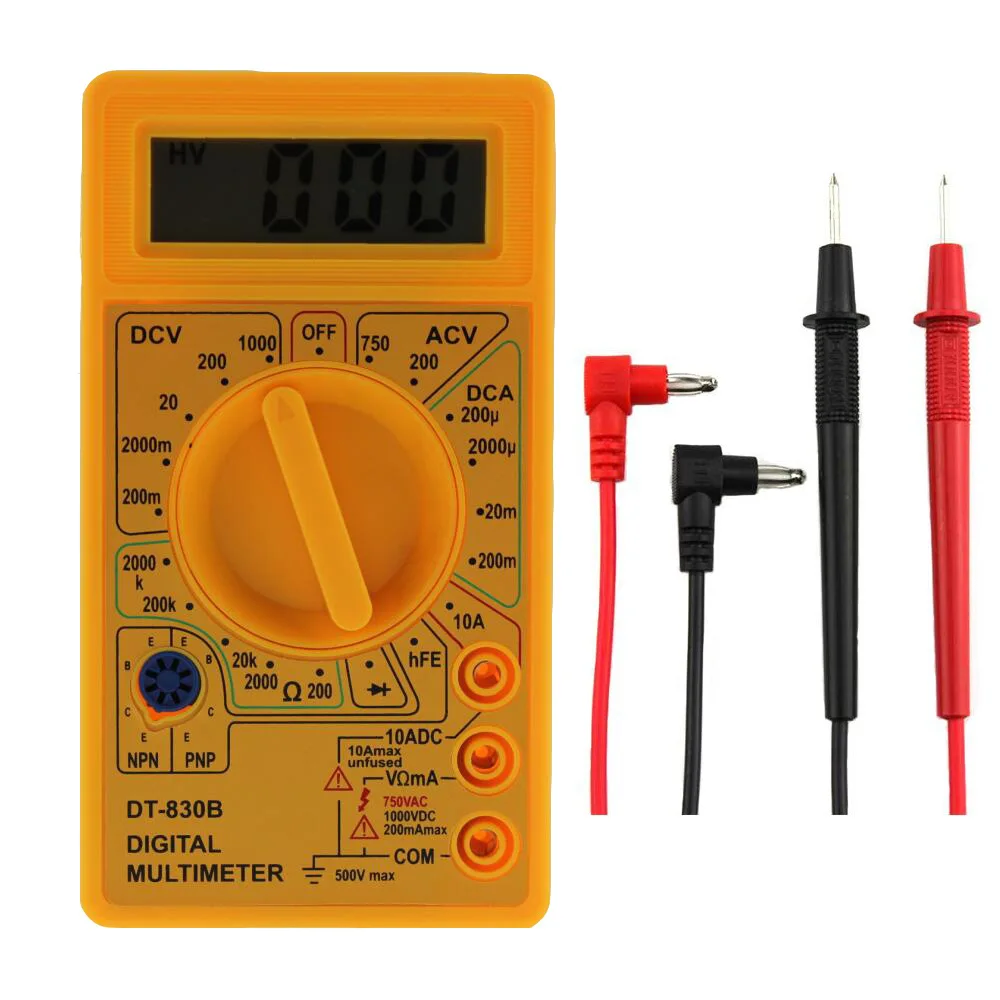

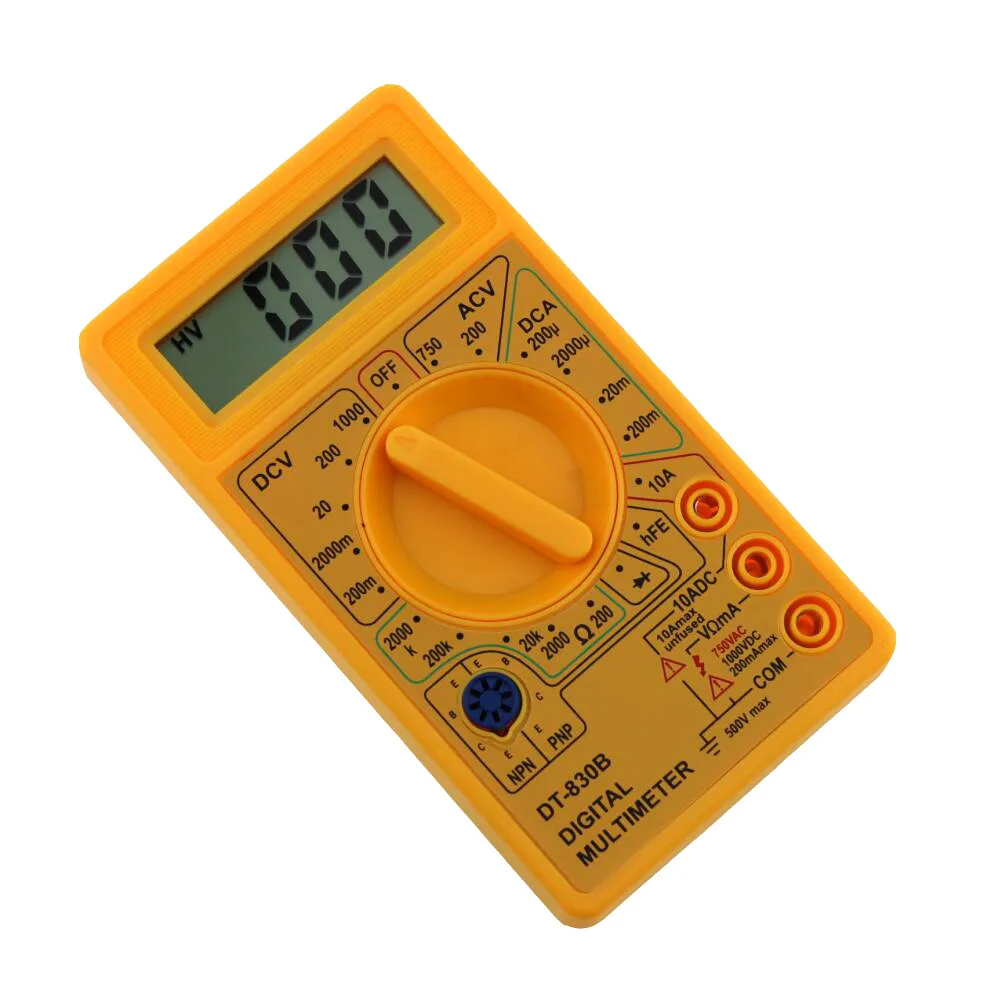

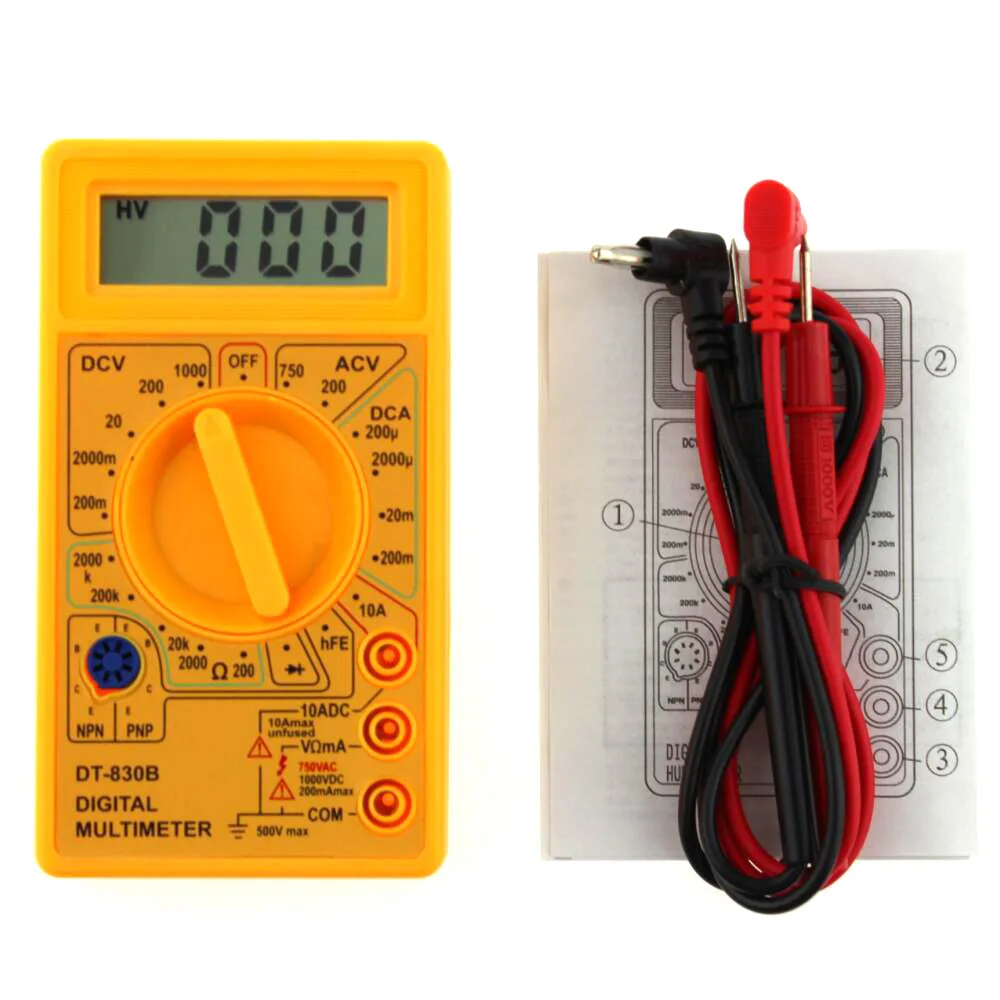

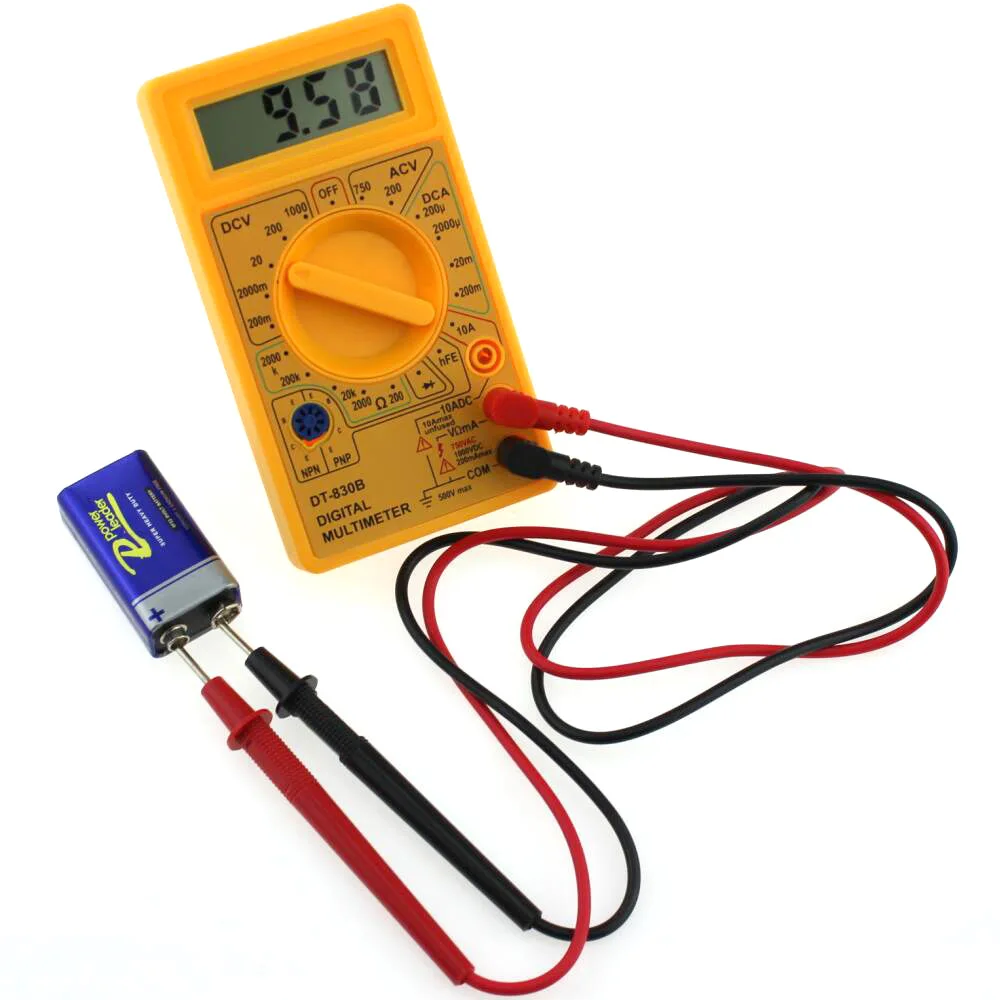

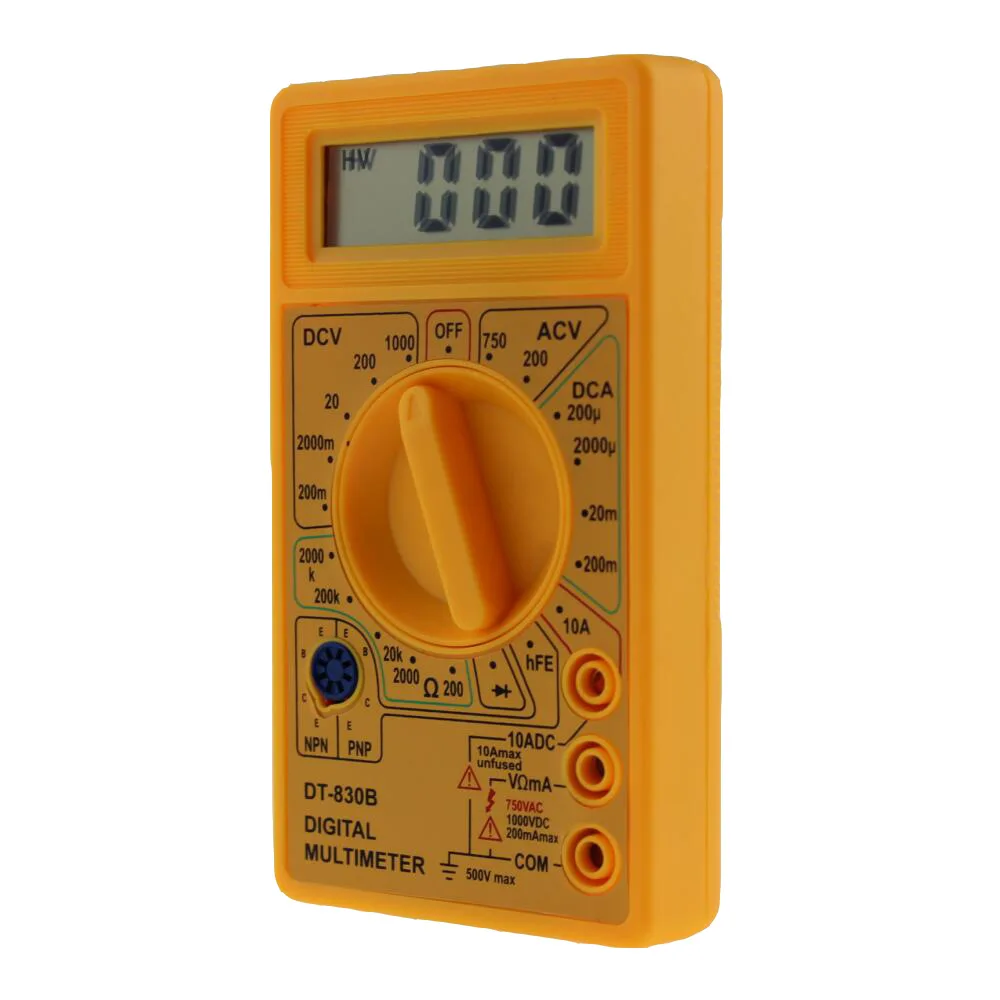

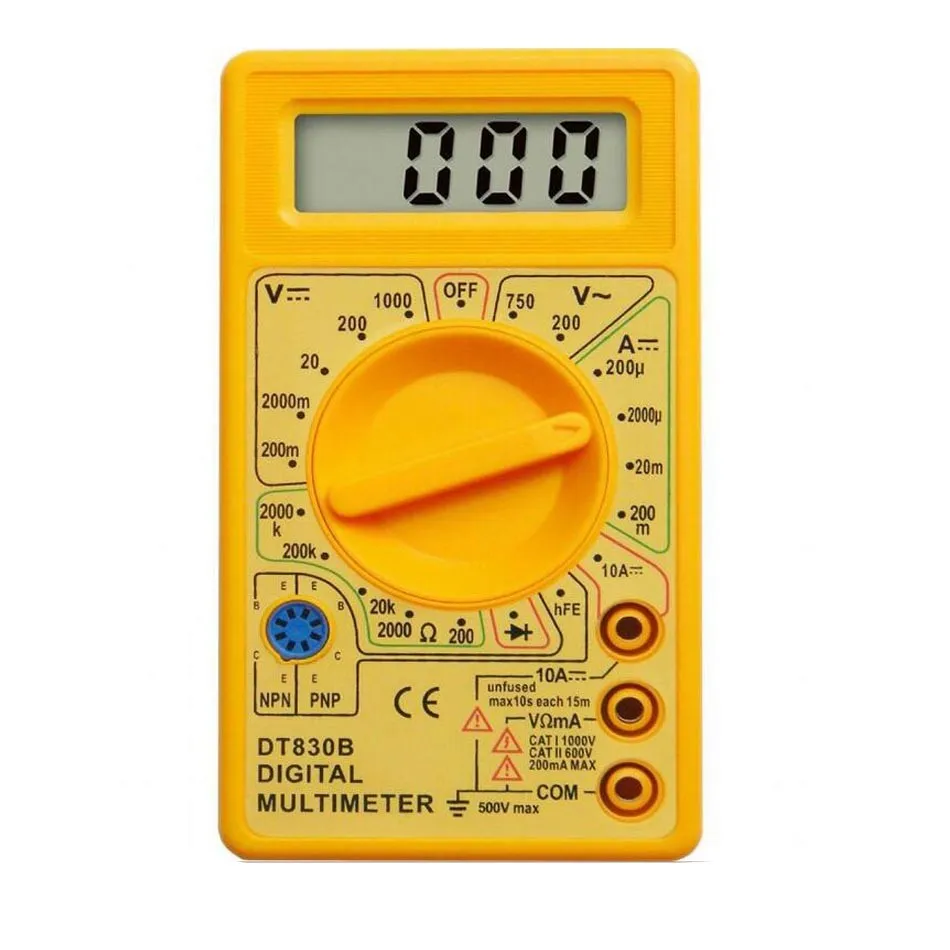

DEKO High Quality Professional Electric Digital Multimeter Tester

Availability:

89 in stock


$8.55

89 in stock








Sponsored Products

DEKO Official Store







            ITEM DESCRIPTION



              A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen.



              It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.







            FEATURES



              3 1/2 digits, 7segment, 0.5"high LCD Display



              Max display: 1999, Auto polarity display



              Small and compact design



              Overload protection on all ranges



              Sampling 2~3 times readings per second



              Diode assembly test / Temperature test/Transistor HFE test



              Low battery voltage indication







            SPECIFICATION



               Measuring range:    Max AC Current: 10A



                                          Mac AC Voltage range: 1000V



                                          Max Dc Voltage range: 750V



                                          Resistance Measurement: 200 Ohm-2000K Ohm range



            Scale degree&Accuracy( Showed as in the table):



                 Function                                                        Range                                     Resolution                            Accuracy
                 DC Voltage 200mV 100uV ±(0.5%+3)
2000mV 1mV
20V 10mV
200V 100mV
1000V 1V ±(0.8%+5)
                 AC Voltage 200V 100mV ±(1.2%+8)
750V 1V
                 DC Current 200uA 0.1mA ±(1.0%+5)

2000uA

1uA

20mA 10uA
200mA 100uA ±(1.2%+8)
10A 10mA ±(2.0%+8)
                 Resistance 200Ω 0.1Ω ±(1.0%+8)
2000Ω ±(1.0%+2)
20KΩ 10Ω
200KΩ 100Ω
2000KΩ 1000Ω

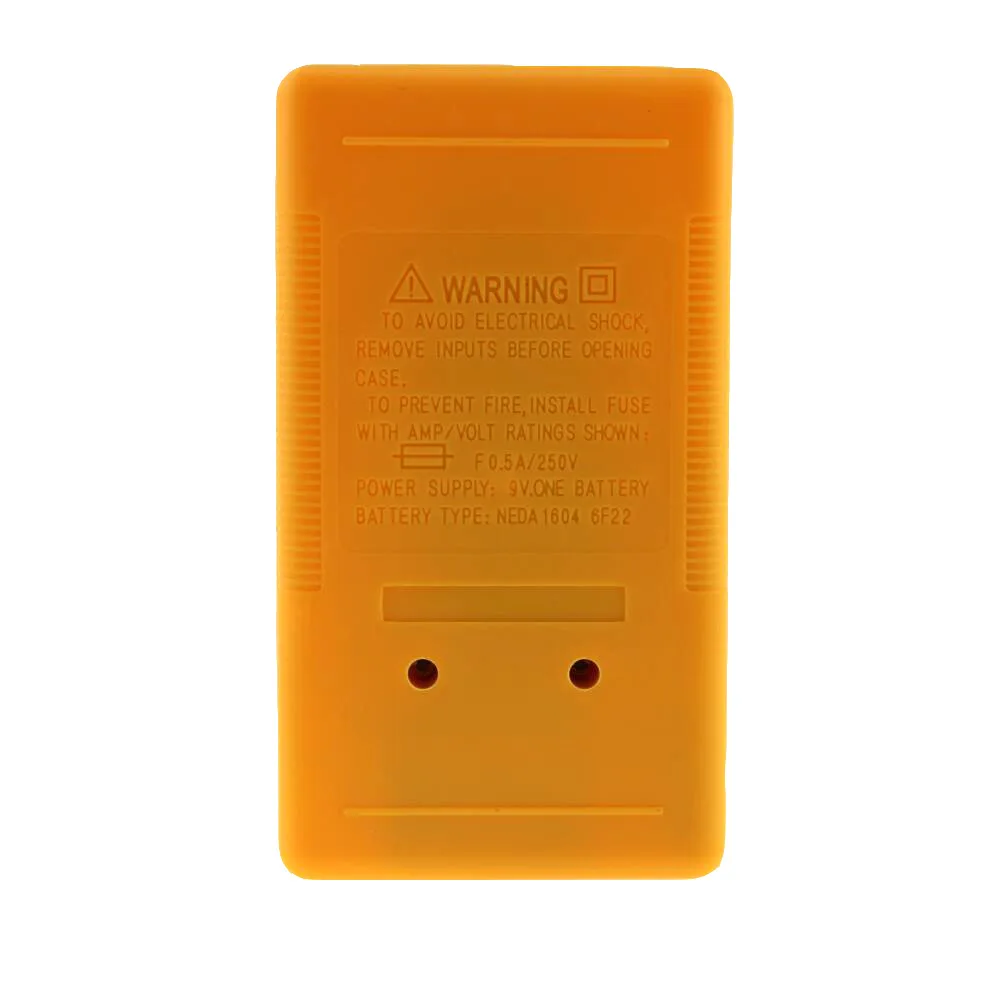

             Power Supply: 9V 6F22 battery(not included)


             Dimension: 126x70x24mm


             Colour: yellow


             Weight: 150g
